Blum 1 2 Overlay Hinge Installation Instructions. Blum Blum 1/2 in. Overlay Frame Hinges (2Pack)BP3336022180S Using a 35mm Forstner bit, drill a hole 13mm deep for the hinge cup, taking care to keep the bit as square as possible to the door Cutting edge technology and a wide variety of high quality products are what set Blum hinges apart

Every hinge from Blum for every application in cabinet making Installation is the same as the 110° hinges and they are interchangeable

Blum Hinge Installation Instructions Review Home Co

NOTE: Before finishing hinge installation, place set screw in hinge plate to prevent hinge plate movement (1-3/8" or greater overlays only) Large overlay Small overlay NOTE: Before finishing hinge installation, place set screw in hinge plate to prevent hinge plate movement (1-3/8" or greater overlays only) Large overlay Small overlay Slide hinge off mounting plate towards center of cabinet

Blum 1/2 Overlay, Face Frame Hinge Kit for PieCorner (2 Sets. Refer to the Door Diagram to mark drilling locations for the hinge cup holes and mounting screw holes on the door Drill with appropriate drill bits: You'll need bits for pilot holes and for the hinge cup

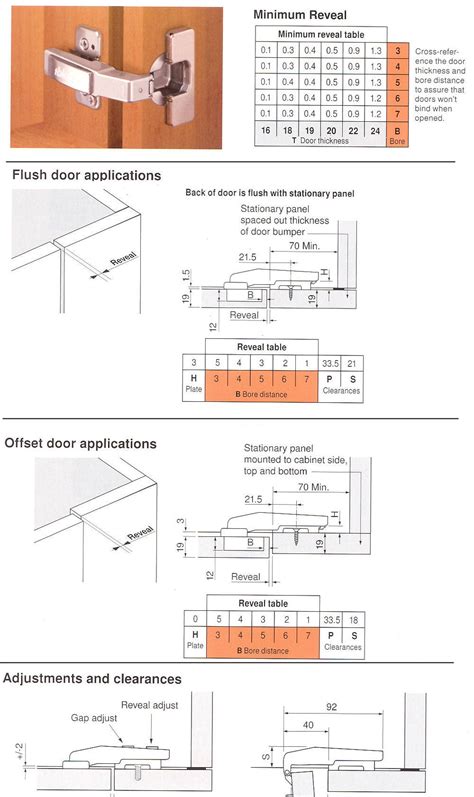

Blum 38N355CE08 Compact 38N Hinge, SelfClose, 107 Degree, 1/2 Overlay. 21.5 66.5 12 11 3-7 F 39.5 68 30 3-7 F 7 75 Hinge systems 〉 CLIP top BLUMOTION | CLIP top - hinges 〉 Standard application Catalogue 2022/2023 • KA-150 110° hinge Web code DQDELA Planning Hinge dimensions and gap calculation based on factory setting (mounting plate spacing = 0 mm) Hinge and front protrusion at full opening angle Overlay. Replace your old cabinet hinges with concealed soft close blum overlay hinges and stop cabinet door slamming while hiding your hinges
